Orthogonal Time Frequency Space

Orthogonal Time Frequency Space (OTFS) is a 2D modulation technique that transforms the information carried in the Delay-Doppler coordinate system. The information is transformed in the similar time-frequency domain as utilized by the traditional schemes of modulation such as TDMA, CDMA, and OFDM. It was first used for fixed wireless, and is now a contending waveform for 6G technology due to its robustness in high-speed vehicular scenarios.



OTFS MODEM



OTFS is a modulation scheme where each transmitted symbol experiences a near-constant channel gain even in channels at high carrier frequencies (mm-wave) or with high Doppler. OTFS essentially performs modulation in the the Delay-Doppler (time-frequency)domain.

It effectively transforms the time-varying multipath channel into a 2D channel in the Delay-Doppler domain. Using this transformation, along with equalization within this domain, each symbol experiences similar channel gain throughout the transmission.

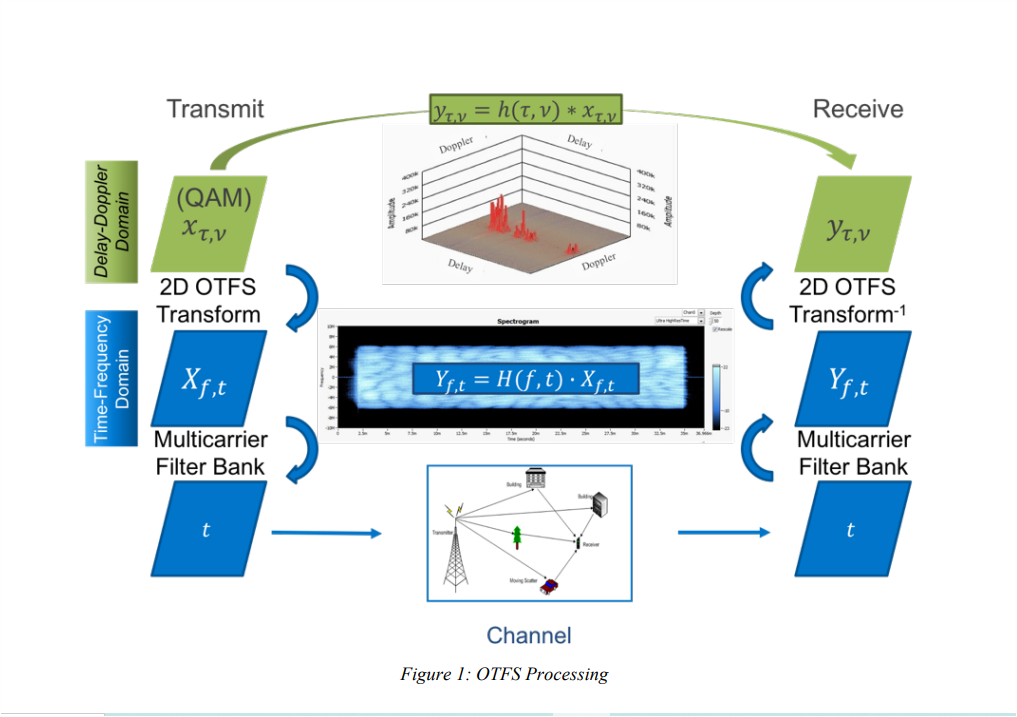

The modulation begins with first mapping the information symbols x[k,l] in the Delay–Doppler domain to symbols X [n, m] for creating the time-domain signal s(t) which is transmitted over a wireless channel. At the receiver end, the time-domain signal r(t) is mapped to the domain of time-frequency using the Wigner transform which is the inverse of Heisenberg transform and then for symbol demodulation uses the Delay–Doppler domain.

The technology has been used in 5G networks and is being considered for 6G networks.











TACS is one of the leading top consultancies in the field of nG.

TACS consultants are the first inventors of fixed or mobile packet radio structures in the world for 2G, 3G, 4G, 5G and 6G wireless systems.












TACS

  • Delivers the insight and vision on technology for strategic decisions on 6G.
  • Assesses technologies and standards and develops architectures for 6G.
  • Provides the energy and experience of world-wide leading innovators and experts in 6G.
